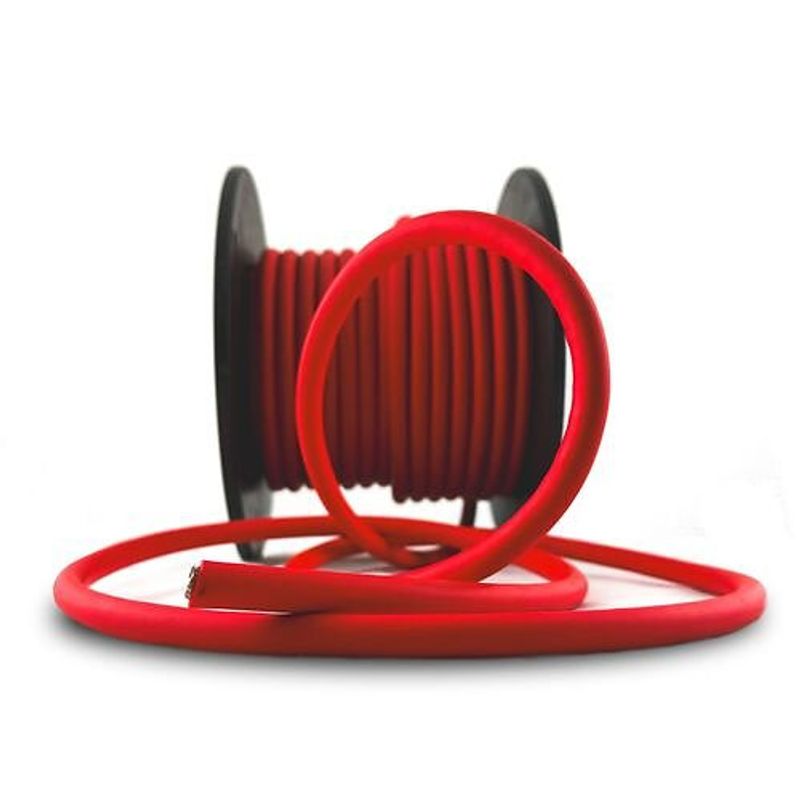

110-05004_1m Red

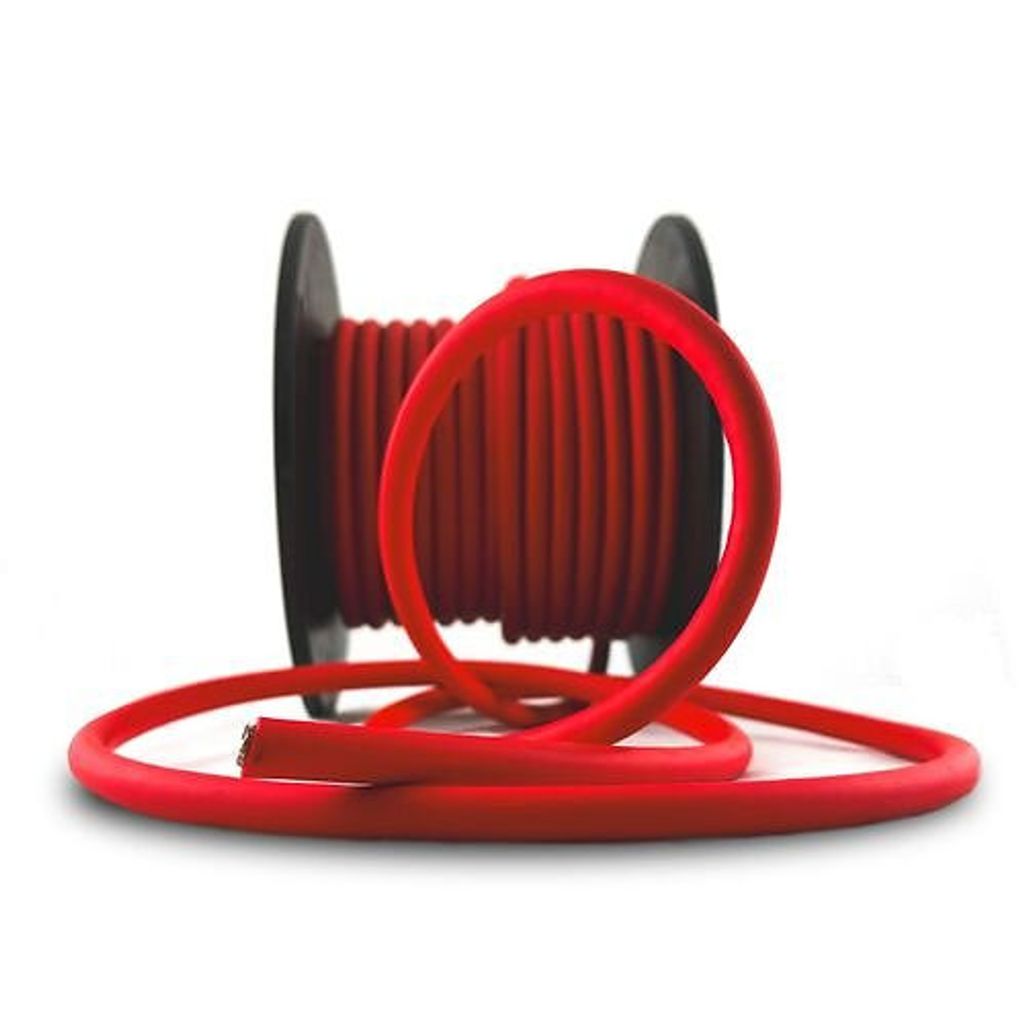

Extra flexible and durable tinned rubber cable

This extra fine-stranded, tinned rubber cable is developed to meet the high demands of marine environments and vehicles. It is very flexible and easy to work with, making installation easy even in tight spaces such as boats, motorhomes and cars where cable routing can often be challenging.

The robust polychloroprene (Neoprene) sheath is both flexible and durable, while being flame retardant and oil resistant. The material is also denser than PVC, which reduces oxygen penetration and thus prevents oxidation.

Each strand is individually tinned for long-term corrosion protection, making the cable particularly suitable for marine and other demanding environments. The extra fine-stranded construction provides high resistance to vibration and improves power transmission at low voltages, such as 12 V.

Type: H01N2-D FT
Outer sheath: Polychloroprene (Neoprene)
Conductor: Tinned copper
Cable type: Class 6 (extra fine stranded)
Strand thickness: 0.19 mm
Minimum bending radius fixed installation: 4 X D
Minimum bending radius mobile installation: 5 X D
Temperature range (fixed installation): -40˚C to +85˚C
Maximum voltage: 100 V (Test voltage 1000 V)
Colors: Black, Red & Yellow
Flameproof, self-extinguishing, oil & weather resistant
Flame retardant according to IEC/EN 60332-1-2
Conductor construction according to EN 50525-2-81
Complies with IEC 60245-1
CE approved
