AP-M81AC NEO 4x8 LOUD AS HELL planka slope v2
A 4x8" SPL-Board with Arnolds most advanced Midwoofers and Deaf Bonce Tweeters.
Läs mer
Paketet innehåller
Liknande produkter
Beskrivning av AP-M81AC NEO 4x8 LOUD AS HELL planka slope v2
AP-M81AC NEO 4x8 LOUD AS HELL SPL-board Slope V2 – Arnold NEO power with extreme endurance and precision
The AP-M81AC NEO 4x8 LOUD AS HELL SPL-board Slope V2 is the board for those who want to combine maximum efficiency, brutal endurance, and razor-sharp midrange attack. With four Apocalypse AP-M81AC NEO 8" midrange drivers and two AP-T25 NEO V2 horn tweeters, this system delivers every tone with rare clarity and uncompromising power.
The midbass drivers, AP-M81AC NEO, represent the next level in the Arnold series evolution. Built on the foundation of the AP-M81AC but upgraded with an advanced neodymium magnet system (2.3T gap induction – highest in its class) and a high-temperature 1.75" voice coil, this speaker handles 300W RMS with extreme durability and precision. The recommended operating range is 150–8000 Hz, perfectly covering the midrange with tight punch and defined mid tones – ideal for loud and demanding setups.
High frequencies are handled by two AP-T25 NEO V2 horn tweeters – rated at 100W RMS with neodymium magnets and 108 dB sensitivity. They're optimized to cut through the mix without losing control – even when the system is pushed to the limit.
The system is crossed using DB 2-way filters v2, with a crossover point at 4000 Hz (12 dB/oct) and three-step tweeter attenuation (0, -3, -6 dB) – letting you fine-tune the sound image to your setup and preferences.

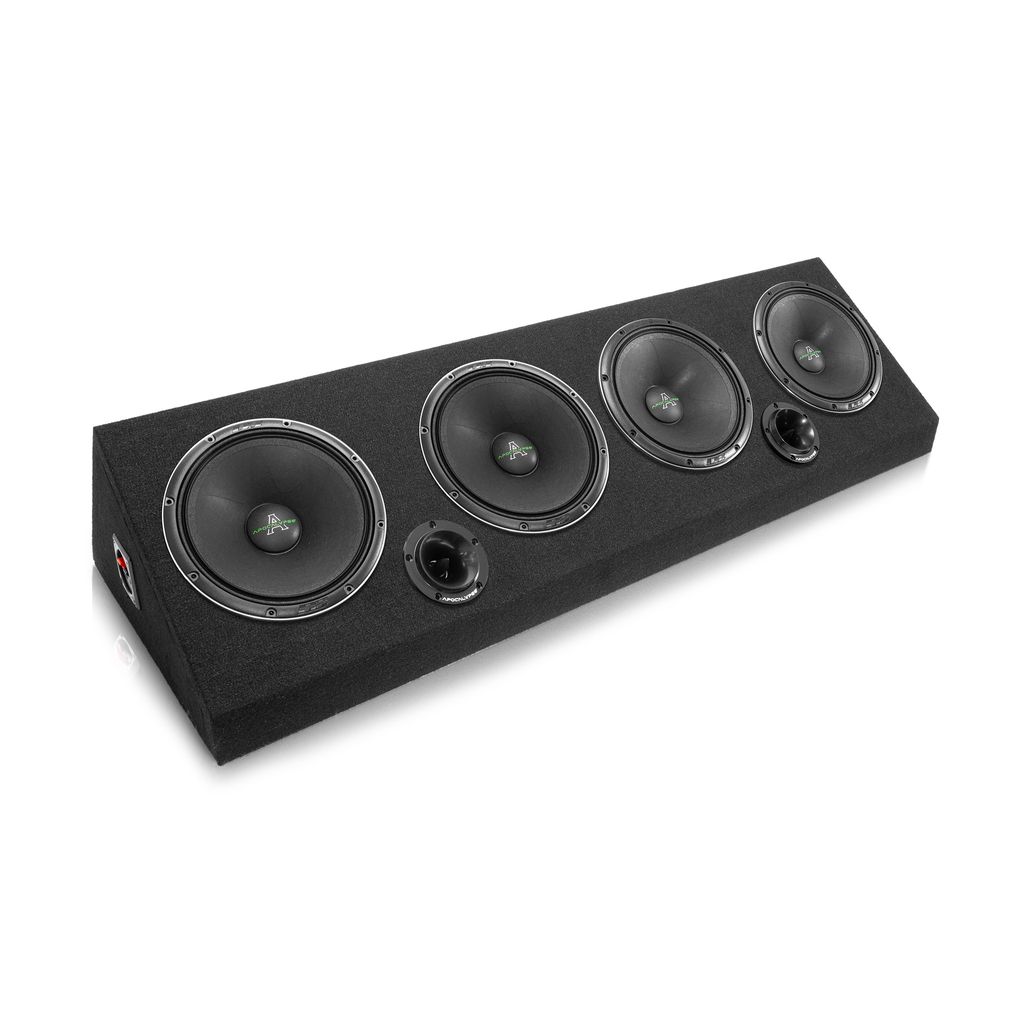

All components are mounted in a robust LOUD AS HELL 4x8" SPL-board Slope – sealed and angled MDF construction, embroidered LOUD AS HELL logo, and side-mounted terminals. Four 8" midbass slots and two tweeter positions make installation quick and efficient.
The AP-M81AC NEO 4x8 LOUD AS HELL SPL-board Slope V2 is the ultimate choice for anyone seeking extreme SPL with endurance and precision few systems can match. A true flagship – ready to dominate.
NOTE! This package is sold as a DIY kit.
The tweeter hole in the enclosure may be smaller than the included tweeters. This allows most tweeters to be used with the provided universal enclosure. You may need to use a rasp or similar tool to widen the hole for a perfect fit.
| Storlek på baselement | 4x8" |
| Effekttålighet RMS | 1200 W |
| Effekttålighet MAX | 2400W |
| Typ av baslåda | Sluten |
| Bredd | 1010 mm |
| Djup (nedre) | 380 mm |
| Höjd | 220 mm |
