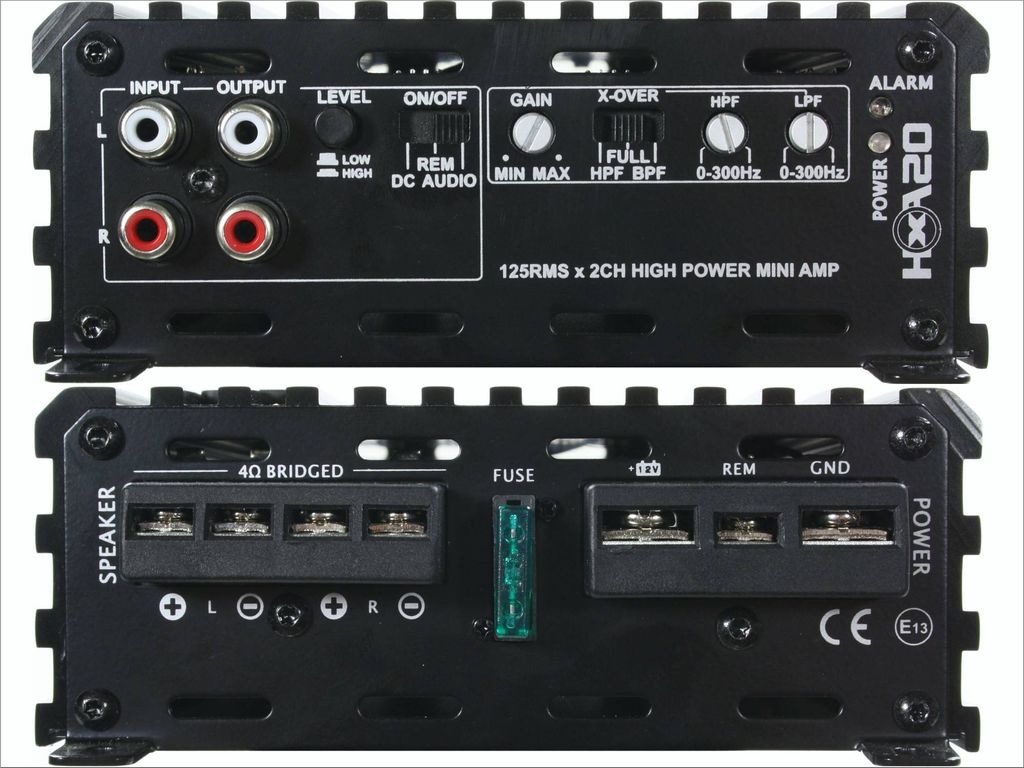

Excursion HXA20

The new HXA series continues with its well-known, heavy, smart military heat sink design. Excursion expanded its legendary HXA series from the previous 5 models to 11 renewed and new models.

With an additional 6 new amplifiers and new features, the HXA series now provides much more than you will ever need for any application or competition you want to engage in.

The feature for all models now includes a completely redesigned "Input Stage" to accept input signals up to 5V for low-level and up to 15V for high-level signals.

All models now have fully selectable 12dB per octave High/Low/Bandpass Crossovers, covering all types of car stereo requirements.

For HXA Mono amplifiers, an additional feature includes a fully selectable bass boost up to 12dB @ 45Hz.

Improved NI-plated screw and hex clamps that can connect up to 0awg cables (model-dependent). Carefully designed to allow mounting of "Hollywood ENERGETIC HPST Power Support Terminals."

Other features include a double-sided circuit board with reinforced POWER layers, triple brackets, oversized copper transformers to facilitate performance via high-quality SMD and MOSFET technology.

An outstanding series of high-efficient Class D MONOS, Full Range Digital, and True Audio ANALOG Stereo with Super Noise Rejection Circuit, Overload, Overheating, Short Circuit, High, and Low Voltage Protection.

Upgraded with auto start, high-level input, and bandpass filter.

Auto ON/OFF: DC or Music pulse Frequency range:

Signal-to-noise ratio: > 80%

Distortion at 4 ohms: < 0.05%

Efficiency at 4 ohms: > 60%

Protection at low voltage: Yes, under 8 Volts

Overheating protection: Yes, activates at 80 degrees

Short-circuit protection: Yes

Components and circuit boards: Military standard/SMD parts/double-sided FR-4

External fuse required: Yes, 30 Amps

Power terminals: Screw Speaker terminals: Screw
