Beskrivning av Excursion HXA 3K

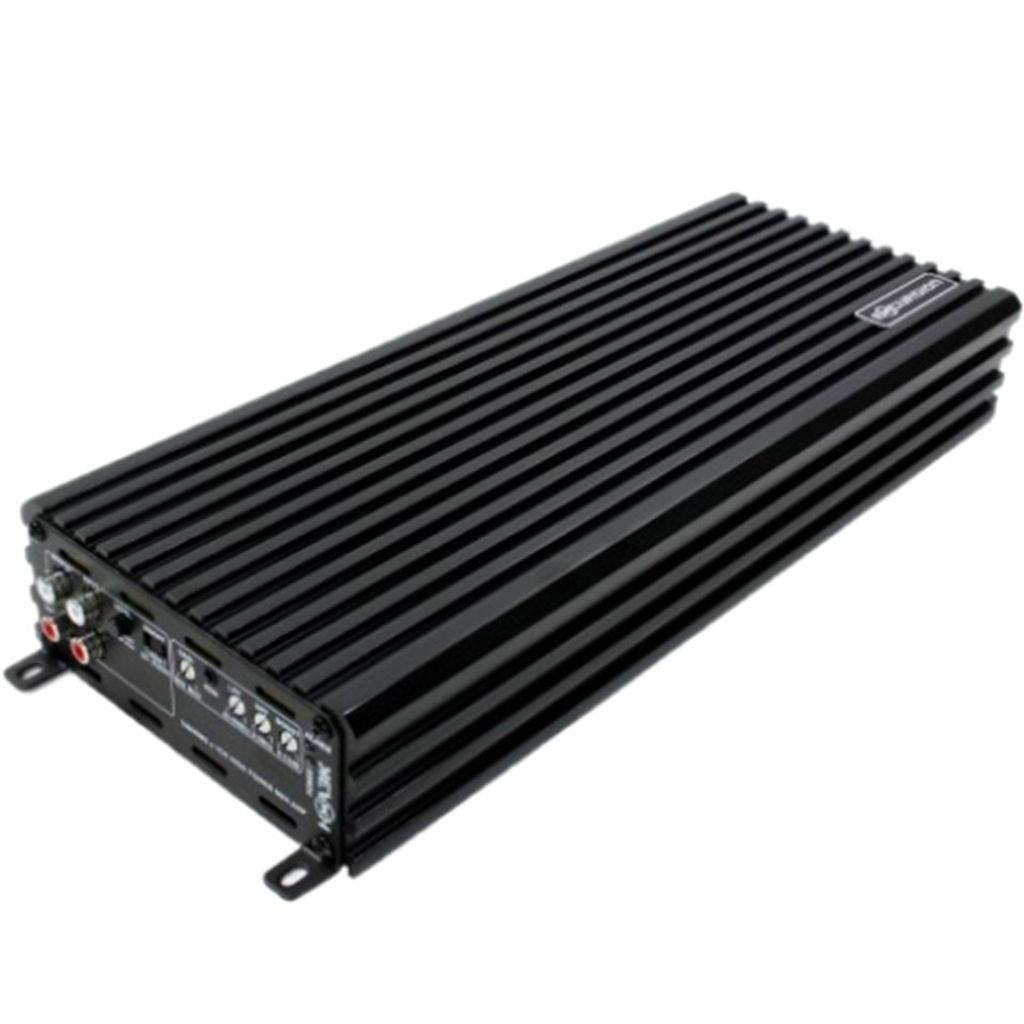

A digital 1-channel amplifier with very high efficiency and small dimensions, built on a double-sided circuit board made with SMD surface mounting technology. The amplifier is equipped with a noise and interference elimination system, as well as a multi-way protection system against overload, short-circuit at the speaker output, overheating, and too low or too high supply voltage. The standard equipment also includes smoothly adjustable LP and HP filters with the option to work in BP Subsonic (Band Pass) mode, "Bass Boost" equalizer, "Auto Turn ON / OFF" system that controls the amplifier's on and off, and the input, High/Low Input for audio signal with speaker level and RCA level (common input for High/Low mode via RCA jacks). Models in the BRIDGE connection system (one as the controlling master, the other as a slave.) The HXA-3K amplifier operates stably with a load of up to 1 Ω in a standard connection configuration or up to 2 Ω in a system with two identical amplifiers working together in BRIDGE mode. This can also be equipped with the optional Excursion HXA-RC subwoofer remote volume control.
| Number of channels | 1 channel |
| Förstärkarklass | Klass D |
| Effekt i 1 ohm RMS | 1x1800W |
| Effekt i 2 ohm RMS | 1x1200w |
| Effekt i 4 ohm RMS | 1x600W |
| Högpassfilter | Ja |
| Band-pass filter | Yes |
| Lågpassfilter | Ja |
| Subsonicfilter | Variabelt Subsonic filter:0 - 50 Hz |
| Bass boost | Variabel Bassboost: 12dB @ 45Hz |
| Högniva-ingång | Auto ON/OFF: DC eller Musikpuls |
| Ingångskänslighet | Ingångskänslighet lågnivå: 0,2 - 5 V |
| Driftspänning | 12 V |
| Bassremote / fjärrkontroll | Tillval |
| Säkringar | Yttresäkring krävs: Ja 150 Ampere |
| Dimensioner | 140 x 54 x 355 mm |
| Vikt | 3,3kg |
-
Hämta30231214-7735db-HXA_AMP2015_ONLINE_Manual.pdf2.12 MB
